# Upper Limits on the Isotropic Gravitational-Wave Background from Advanced LIGO's and Advanced Virgo's First Three Observing Runs

Dated 01 February 2021.
Read this summary
in PDF format
(in English) and in other languages:
Dutch
| Italian
| Japanese
| Polish
| Portuguese
| Spanish
.

The Cosmic Microwave Background (CMB) has provided us with information on the origin of the Universe since it is the oldest electromagnetic radiation we can measure. Similarly, there exists a Gravitational Wave Background (GWB) which is a superposition of gravitational waves generated by different astrophysical and cosmological sources, and can go even further back in time than the CMB, due to the weak coupling of gravitational waves (GWs) and matter. Examples of astrophysical sources include distant compact binary coalescences (CBCs) that cannot be resolved individually and core collapse supernovae. We now have a prediction for the range of strengths of the background originating from distant CBCs, but the background from core-collapse supernovae currently has unknown amplitude, though it is sure to exist. In addition, there are some more speculative sources such as cosmic strings, inflation and first order phase transitions, which are a few examples of cosmological sources. Detecting any of these GW background sources would be a major breakthrough and would provide fundamental insights into astrophysical and/or cosmological processes.

We analyzed data from the first three observing runs (O1, O2 and O3) of Advanced LIGO and Advanced Virgo. We were unable to claim a detection, though we placed more stringent upper limits on the strength of the GWB than had been published before, due to the inclusion of the latest O3 data (see Figure 1). We improved the sensitivity of our search by applying a procedure to remove excess noise. During this procedure we ensured that - to the best of our knowledge - there was no correlated signal coming from environmental noise, such as instrumental, geological or human-related sources. Furthermore, we mitigated the effect of loud glitches by a technique called gating, used for the first time in the search for a GWB, but a standard technique in CBC searches. It consists of zeroing out each glitch in the time domain. This is also the first time that we have included data from the Virgo interferometer in addition to the two LIGO instruments when searching for the GWB. Data from these interferometers was cross-correlated and then used to determine the 95% credible level upper limit on the GWB amplitude through Bayesian inference. Cross-correlating the data allowed us to remove the remaining environmental noise from our analysis, assuming it is un-correlated between interferometers. Co-aligned and co-located detectors are the most sensitive to a GWB, but also to local noise sources. Therefore, the sensitivity to the GWB is dominated by the pair of LIGO detectors, which are the closest to being co-aligned and co-located, though they still provide significantly less than the maximum sensitivity. The contribution of the Virgo detector to the sensitivity is only a few percent, due to its distance and orientation compared to those of the LIGO detectors. Thanks to the relentless efforts of all scientists improving the interferometers, our current upper limit is about a factor of 5 better compared to previous results. While part of this improvement is simply due to analyzing a larger amount of data, most of the increase was due to the increase in sensitivity. If the interferometers had operated at the same sensitivity as in O2, the additional data would only have led to an improvement in the upper limit of less than a factor of 2.

We have also searched for globally correlated magnetic noise, known as Schumann resonances, by looking at magnetic field measurements using dedicated sensors placed near the three interferometers. Identifying Schumann resonances is necessary because they can appear as an effective background and thus “pollute” our signal. The magnetic fields couple to critical parts of the interferometer, e.g., the magnets on the end mirrors, used to control the mirrors and therefore the interferometer. If this coupling is strong enough, it can fake an observable signal where the mirror displacement is not due to a passing GW but due to magnetic fields. Consequently, the Schumann resonances may cause high correlations that could lead us to wrongly claim a GWB detection. To construct a prediction of possible magnetic contamination (see Figure 2) we need two key ingredients. The first is accurate on-site magnetic field measurements with dedicated sensors. The second is a measurement of how these magnetic fields couple to our interferometers and therefore have the possibility to enter as a “fake GW signal”. To determine this coupling we use a coil to create strong magnetic fields near the interferometer and observe their effect on the inferred fake GW signal, while also measuring the magnetic fields accurately. We test for magnetic contamination in two ways. First, we look for contamination in individual frequency bins. Second, we look for the possibility that the sum of magnetic contamination in different frequency bins accumulates to give a result that is above our sensitivity. Our conclusion is that our measured estimates of correlated magnetic noise are well below the sensitivity we achieved in O3, both in individual frequencies and accounting for a sum over multiple frequencies (see Figure 2). Additionally, we implemented a framework, based on Bayesian inference, to simultaneously fit for a GWB and Schumann resonances in our data. Consistent with our other methods, we find neither a signal from the GWB nor one from Schumann resonances. Nevertheless, this newly developed framework is expected to prove extremely useful in future searches as our sensitivity increases even further.

We also determined upper limits on a scalar or vector polarized GW background. These are “forbidden” polarizations in general relativity (GR) where only tensor polarized GWs are allowed. Observing alternative polarizations would indicate that Einstein's theory of general relativity should be modified to something more complicated. These searches for beyond-GR polarizations have benefited from the addition of Virgo data, since adding more detectors to the network can help distinguish between different polarizations. We have not found evidence of these “forbidden” polarizations. Other GW observations are also consistent with GWs having purely tensor polarizations, notably the observation of the binary neutron star signal GW170817.

We also use a model to predict the GWB due to compact binaries (see Figure 3), which may be the first source of the GWB that LIGO and Virgo can detect, as discussed here. We incorporated the most recent observations from the LIGO-Virgo catalog GWTC-2. We found that the GWB can potentially be detected by an upgraded version of the current detectors known as LIGO A+ and Advanced Virgo Plus. We also applied a joint analysis to the GWB and observations of individual compact binaries. Since the GWB is sensitive to binary mergers at larger distances than the individually detectable compact binaries, it is possible that measurements of the GWB could improve measurements of the merger rate of binary black holes in the early universe. While this is not the case in O3, we show that the GWB may be useful in future runs.

Despite the fact that we have been unable to claim a detection of a GWB -yet- this analysis was still a major step forward in our field. Many features were introduced for the first time in the analysis, such as the inclusion of data from a third interferometer, the use of gating to remove glitches, the integration of a fit for Schumann resonances in one consistent Bayesian framework and the use of a model to predict the GWB due to compact binaries. These new features might prove critical for future searches when we reach the sensitivity to claim a detection.

## Find Out More:

- Visit our websites:
- Read a free preprint of the full scientific article here.
- You will find more information on the general concept of gravitational waves here.
- Read more on the need to use multiple detectors.
- Find out what "forbidden" polarizations in general relativity are.
- Read more on compact binary coalescences (CBCs).

## Glossary

**Cosmic Microwave Background (CMB)**: Electromagnetic radiation coming from an early stage of the universe, also known as “relic radiation”. For more information have a look here.**Observing run**: Period during which our interferometers are in full action, taking data to be analysed later on. The third observing run (O3) took place from April 1^{st}2019 until October 1^{st}2019, and was then continued from November 1^{st}2019 to March 27^{th}2020.**Strength of the GWB**: The energy density in gravitational waves. This is expressed as the fraction of the total energy in the Universe in the form of gravitational waves.**Glitch**: Burst of noise in gravitational-wave data, analogous to a pop of static heard from a speaker, that can sometimes be confused for or mask out a real gravitational-wave signal. Read more on glitches here.**Time domain**: The analysis of mathematical functions or physical signals with respect to time.**Cross-correlation**: Measure of the similarity of two (or more) sets of data. If the data from two separate gravitational wave detectors is found to be correlated, this may indicate the presence of the gravitational wave background (provided other possible sources of correlation are ruled out).**Credible level**: Interval within which an uncertain parameter value falls with a particular probability.**Bayesian inference**: Method that allows us to combine new data with some knowledge that we already have (commonly known as prior information), expressed as probability. The combination is used to update our current knowledge and is also expressed as probability (the posterior probability). More information can be found here.**Schumann resonances**: Extremely low-frequency radio waves generated by lightning that remain captured between the Earth's surface and the ionosphere, an atmospheric layer starting from about 60 kilometers altitude. Read more here.**Frequency bins**: Intervals between samples when analyzing mathematical functions or physical signals with respect to frequency, rather than time.**Gravitational-wave polarization**: Geometric shape of the stretching and squeezing of space-time caused by a gravitational wave as it moves. A nice diagram of these can be found in Figure 5 from this link.**Sensitivity curve**: The sensitivity of a GW detector is determined by a large number of noise sources corresponding to many different physical phenomena (e.g., seismic or electronic noise). The sum of all these noise sources determines the sensitivity of the detector at each frequency, giving its sensitivity curve.

## Figures

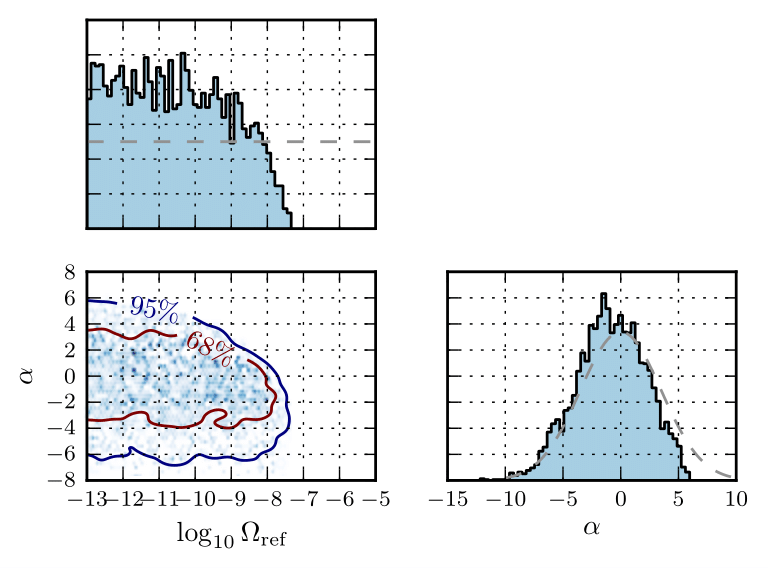

**Figure 1**:
Plot showing the probability distributions for the amplitude of
the gravitational wave background Ω_{ref}
and the spectral index α in Ω_{ref}(*f*/25 Hz)^{α},
our assumption about the GWB dependence on frequency *f*
(which includes the frequency dependence of a number of possible
sources). These distributions show that the data prefers lower values of
Ω_{ref}. The grey dashed lines represent our “a priori”
assumptions about these parameters. The 68% and 95% curves show the
regions enclosing those percentages of the total probability.

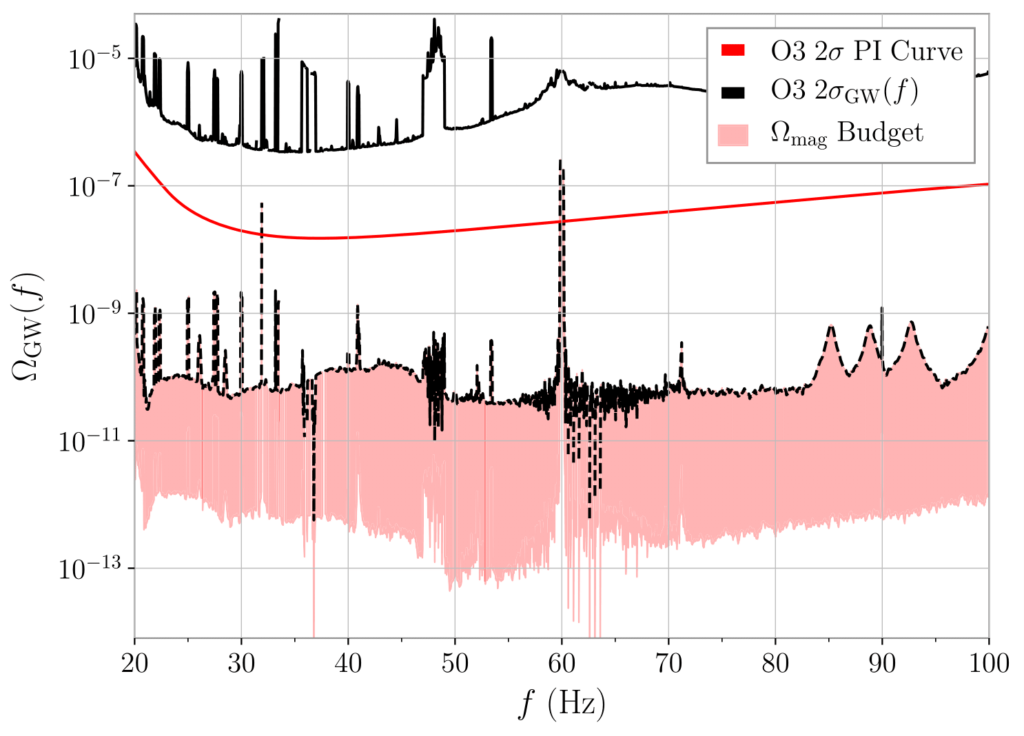

**Figure 2**:
This plot shows the effect of the correlated magnetic signal, called Ω_{Mag}
Budget (expressed in terms of the energy density of gravitational waves
that would be inferred from this correlated signal in the
interferometers, Ω_{GW}), both for individual frequency bins
(black dashed curve) as well as the integrated effect over multiple
frequency bins (red band).
The top of the red band (the black dashed curve) is below the black
sensitivity curve,
called 2σ_{GW}(f),
indicating that magnetic contamination is well below our sensitivity in
each individual frequency bin. The red sensitivity curve, called 2σ PI
Curve, shows the sensitivity of the search to an accumulation of
magnetic noise over multiple frequency bins. We see the red band is well
below this red sensitivity curve.
Our measured estimates of correlated magnetic noise are well below the
sensitivity we achieve in O3, both in individual frequencies and when
accounting for a sum over multiple frequencies.

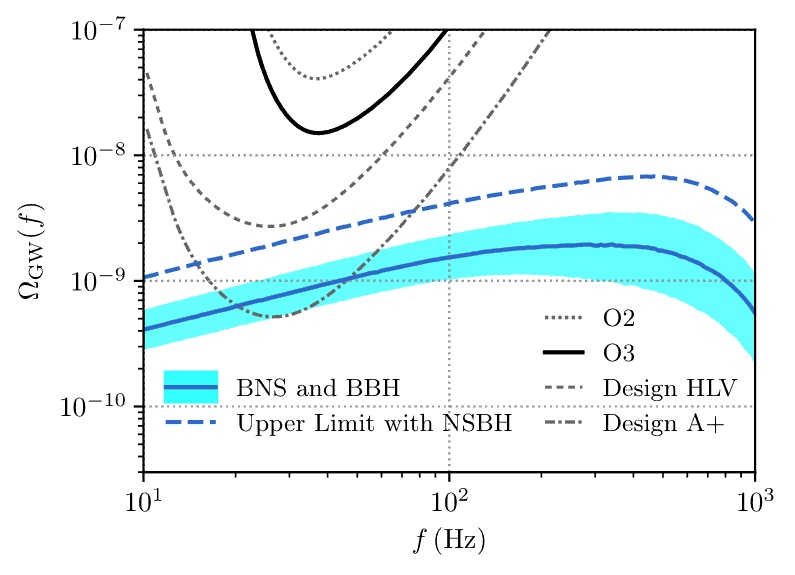

**Figure 3**:
